This curling iron Ceramic Heating Tube is a professional styling tool that utilizes advanced ceramic heating technology. Compared to traditional metal heating elements, the ceramic heating tube offers significant advantages—such as rapid heating, uniform heat distribution, and hair-protecting properties—making it an ideal choice for both home use and professional salon styling.

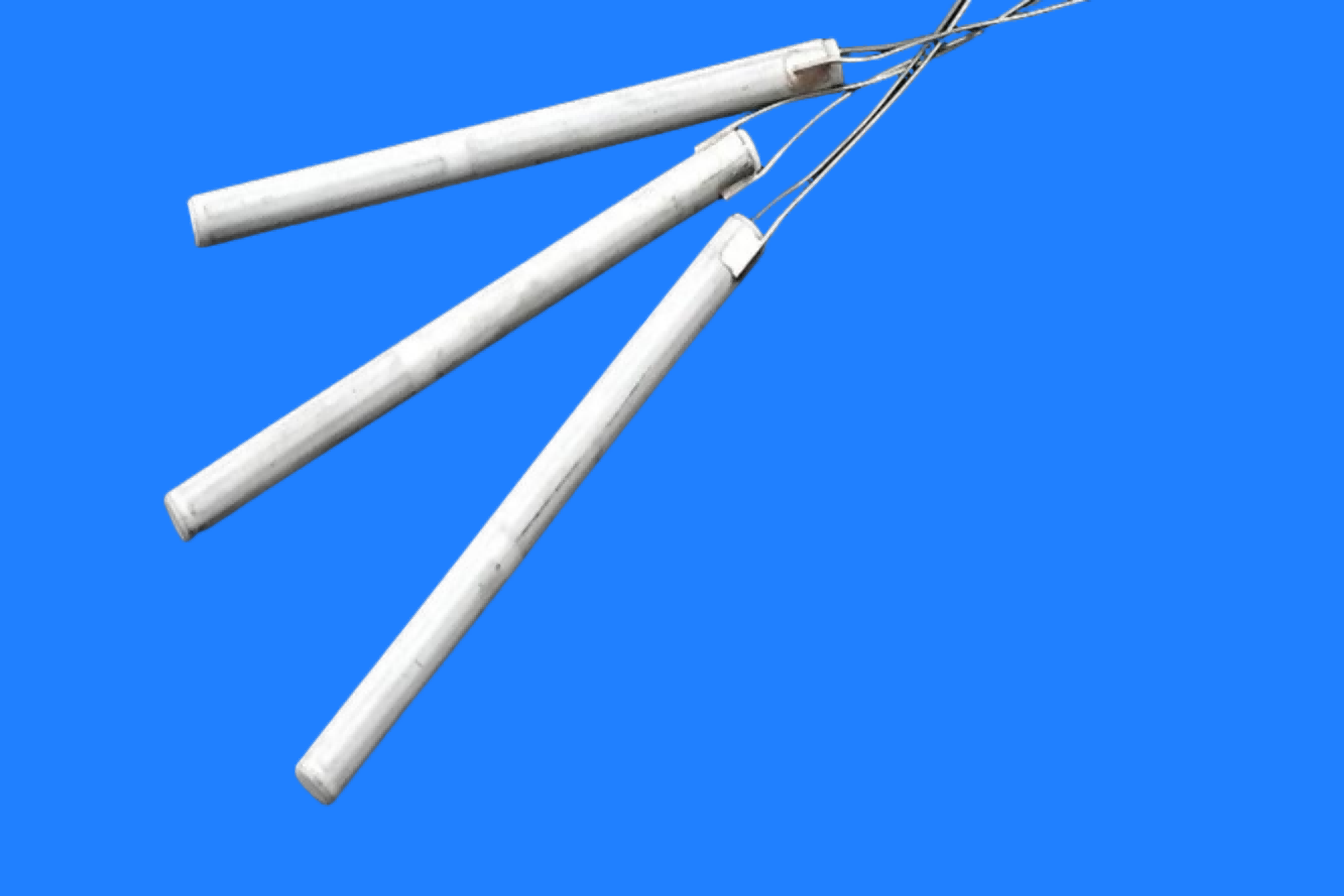

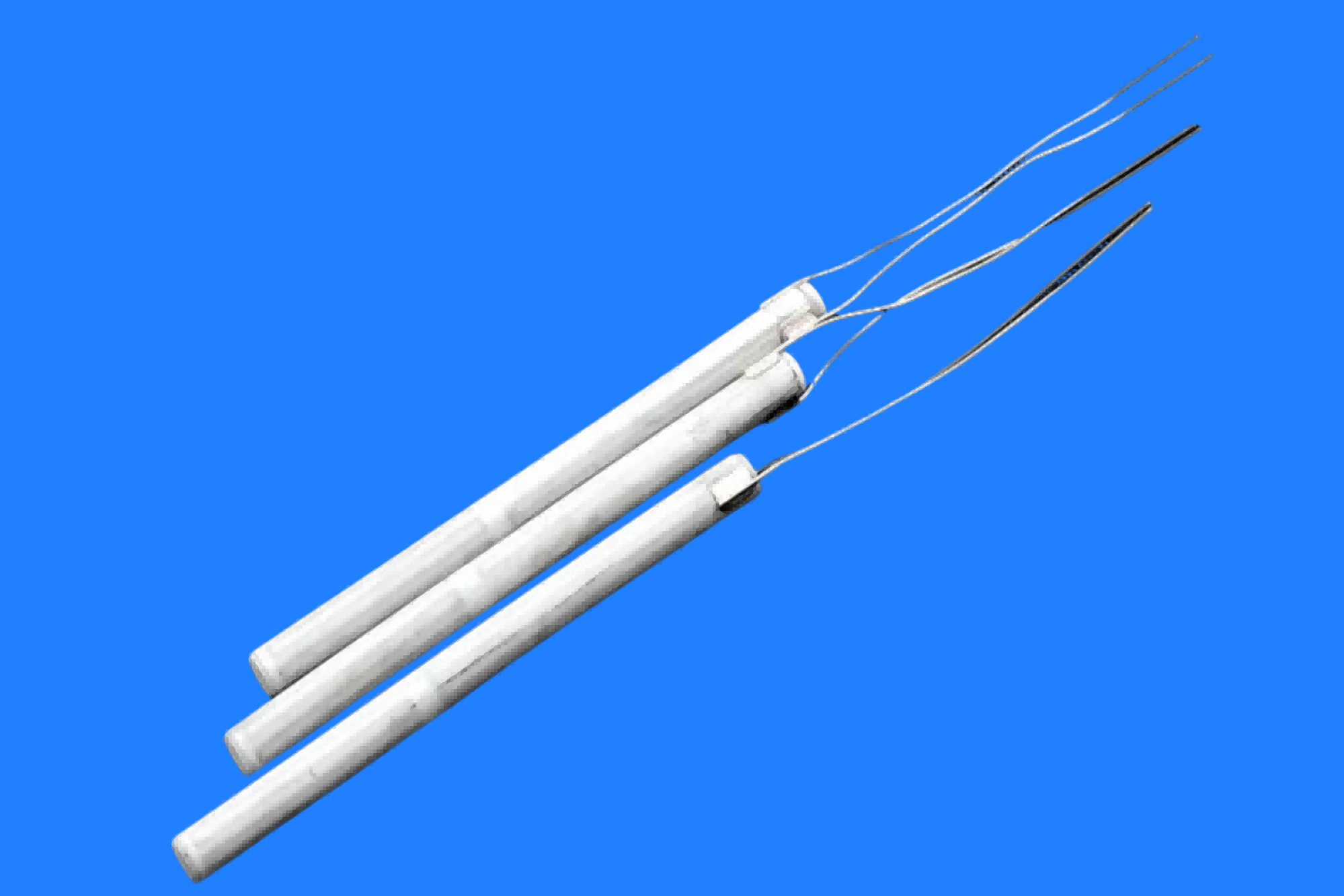

Alumina Ceramic Heating Element Tube for Curling Iron
Product Descriptions
This Curling Iron Heating Element features a high-purity alumina ceramic core formed through integrated high-temperature sintering, combined with a uniformly wound, high-temperature resistant nickel-chromium heating wire and integrated terminal lead connections, resulting in a compact and stable structure. Leveraging the core advantages of alumina—such as superior insulation, uniform heat conduction, rapid heating, resistance to thermal shock, zero water absorption, and corrosion resistance—it effectively eliminates common issues associated with traditional mica heating elements, such as electrical leakage, premature aging, and uneven heating. It is perfectly suited for a wide range of small personal care heating appliances, including home curling irons, hair straighteners, professional salon styling tools, and portable beauty devices. The product supports customization of dimensions, power, and voltage with precise tolerance control, meeting CE and UL safety standards for cross-border small appliances. Offering stable heating, precise temperature control, and a long service life, it is the preferred safe, core heating component for global manufacturers of hair styling appliances.
Product Core Technological Advantages
1. Far-Infrared Ceramic Heating Technology
Utilizes a high-quality PTC ceramic heating element that emits far-infrared rays upon activation. Heat penetrates the hair strands evenly from the inside out, avoiding the "scorched outside, damp inside" effect often caused by traditional metal heating elements, resulting in long-lasting, natural-looking curls.
2.Rapid, Constant-Temperature Heating
Rapid 30-second heat-up: heats up instantly upon activation—no long waits.
Smart constant-temperature control: Precisely maintains the set temperature (typically adjustable between 120°C and 220°C) to prevent hair damage caused by temperature fluctuations.
3.Negative Ion Hair Care Technology
The ceramic heating element continuously releases negative ions during operation, effectively neutralizing static electricity and sealing the hair cuticles. This leaves curls smooth and glossy, eliminating frizz and dryness.
4.360° Even Heat Distribution
The ceramic material offers high thermal conductivity and uniform heat distribution; the temperature variance across the heating element's surface is kept within ±5°C, ensuring consistent heating for every strand of hair and resulting in full, bouncy curls.
Product Technical Specifications
| Item | Detailed Specifications |
| Main Material | 95% high-purity alumina ceramic (Al₂O₃ 95 ceramic); 99% alumina ceramic is available as a high-end option. |
| Structural Configuration | solid or hollow ceramic cylindrical core with a high-temperature nickel-chromium alloy heating wire; stainless steel lead wires connected via metal terminal tabs; integrally encapsulated. |
| Molding Process | ceramic tube formed via dry pressing and extrusion, followed by high-density sintering at 1650°C; heating wire wound automatically and uniformly, treated with high-temperature insulating glaze, and lead wires secured via laser welding. |
| Standard Sizes (customization available) | ceramic tube outer diameter φ3mm~φ10mm; total length 30mm~120mm; wall thickness 0.4~1.2mm; lead wire length 50~200mm, can be cut to size as needed; power specifications 20W~120W, suitable for home hair styling equipment. |
| Machining Accuracy | ceramic outer diameter tolerance: ±0.01 mm; total length tolerance: ±0.1 mm; tube wall thickness uniformity: ±0.03 mm; heating wire winding pitch error: ≤0.05 mm. |
| Surface Finish | ceramic exterior features a dense, matte glaze free of pores and cracks; the lead wires have a high-temperature, oxidation-resistant coating, and the solder tabs are nickel-plated for oxidation resistance. |
| Voltage Adaptation | universal AC 110V/220V; voltage specifications for various countries can be customized. |
| Production Model | standard off-the-shelf products available in bulk + OEM/ODM customization; mold production is available based on customer specifications for power, dimensions, lead wire length, and wire exit direction. |
| Matching Accessories | available with a complete set of assembly components, including temperature-sensing thermistors, thermal insulation mica, metal housings, and insulating silicone sleeves. |
| Safety-related Design Features | heating wires are evenly distributed, preventing localized overheating; the fully insulating ceramic substrate isolates the conductive wires, protecting against electric leakage and short circuits. |
Product Applications
Why choose ceramic heating tube?
| Comparison Item | Ceramic Heating Tube | Traditional Metal Heating |
| Heating Rate | ⭐⭐⭐⭐⭐ | ⭐⭐⭐ |
| Thermal Uniformity | ⭐⭐⭐⭐⭐ | ⭐⭐⭐ |
| Hair Care Benefits | ⭐⭐⭐⭐⭐ | ⭐⭐ |
| Service Life | ⭐⭐⭐⭐⭐ | ⭐⭐⭐ |
| Safety | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐ |
Our workshop
|
CNC Workshop |
Testing Room |
|
Surface grinding Workshop |
Sintering Workshop |
|
Circular Grinding Workshop |
Injection molding Machine Workshop |
Why choose us?
1.Customized R&D, rather than standard product adaptation
2.Deep control of materials science：Material Selection Based on Needs，Microstructure Optimization，Batch Consistency
3.Precision machining capability：Flatness can reach 0.001mm, parallelism 0.002mm, and roughness Ra 0.1μm.
FAQ
Q1: What products does your company offer?
We specialize in high-performance ceramics such as alumina and silicon nitride, providing insulators, structural components, wear-resistant parts, and customized solutions.
Q2: Can you customize non-standard parts?
Yes. We support processing based on provided drawings and collaborative technical development, offering a full-process service from design to mass production.
Q3: What about accuracy and delivery time?
Standard tolerance ±0.05mm, precision grade ±0.01mm; samples 7-15 days, bulk orders 20-30 days.
Q4: Main application areas?
Power, electronics, machinery, chemical, and aerospace industries.
Q5: Quality assurance measures?
Full-process quality inspection, providing material reports and performance test data, supporting third-party certification and testing.
Q6: Do you provide technical support?
We provide professional support such as material selection consultation, design optimization, and failure analysis.
